HP55 / High-Purity Drum

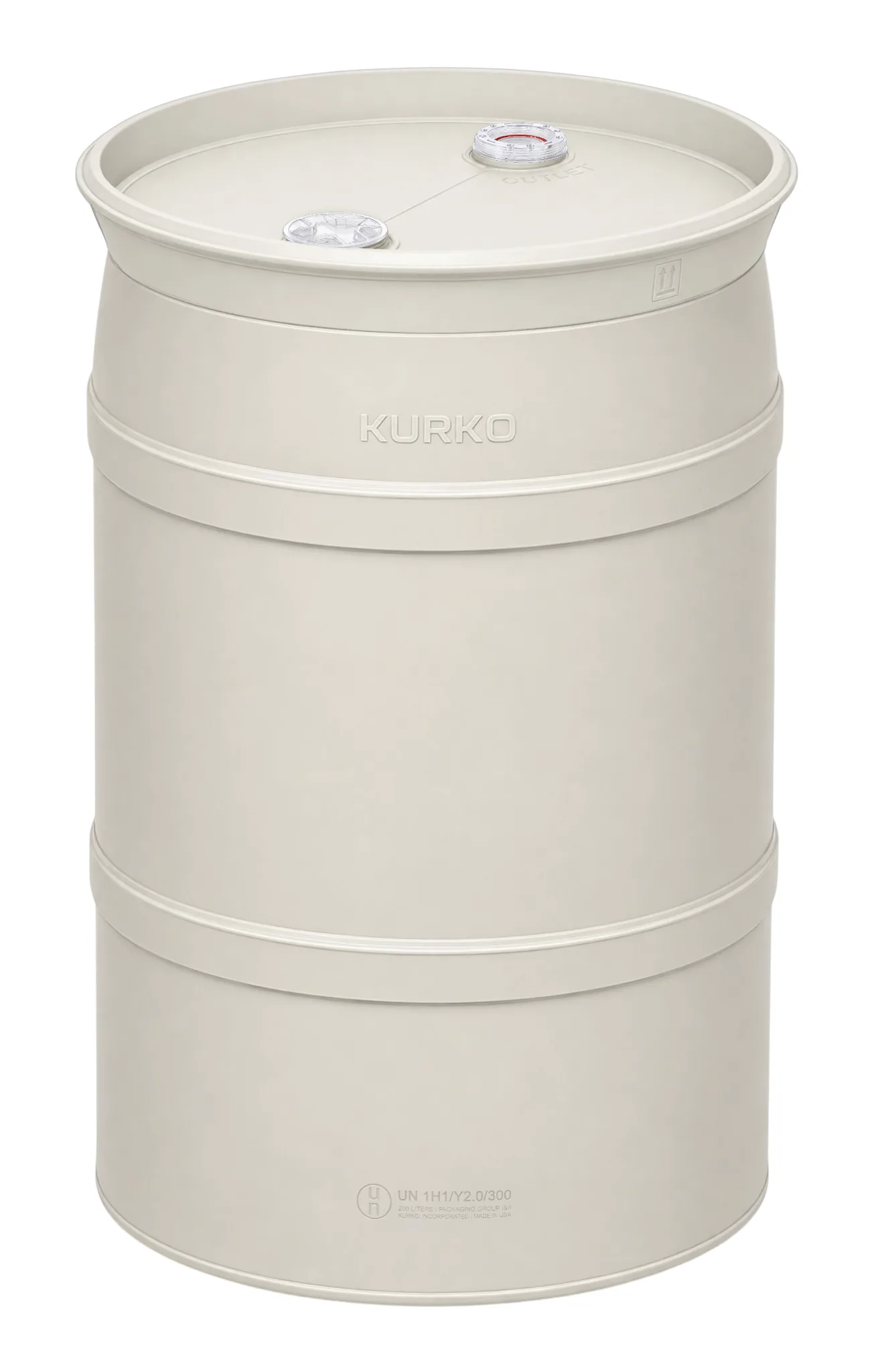

A 55-gallon Tri-Layer HDPE drum for high-purity wet chemicals that do not require semiconductor-grade release documentation. One seamless, blow-molded body in natural unpigmented HDPE combines a virgin wetted layer, a structural core, and a UV-stabilized exterior.
One Body. Three Co-Extruded Layers.
Virgin HDPE at the wetted surface.
Seamless, blow-molded construction from fill to dispense.
HP55 / Assembled Drum
Containment Engineered in Three Layers
Clean contact inside, structural support through the core, and a protective exterior.
High-Purity Virgin HDPE
Structural HDPE Core
UV-Stabilized HDPE
Controlled Top Access

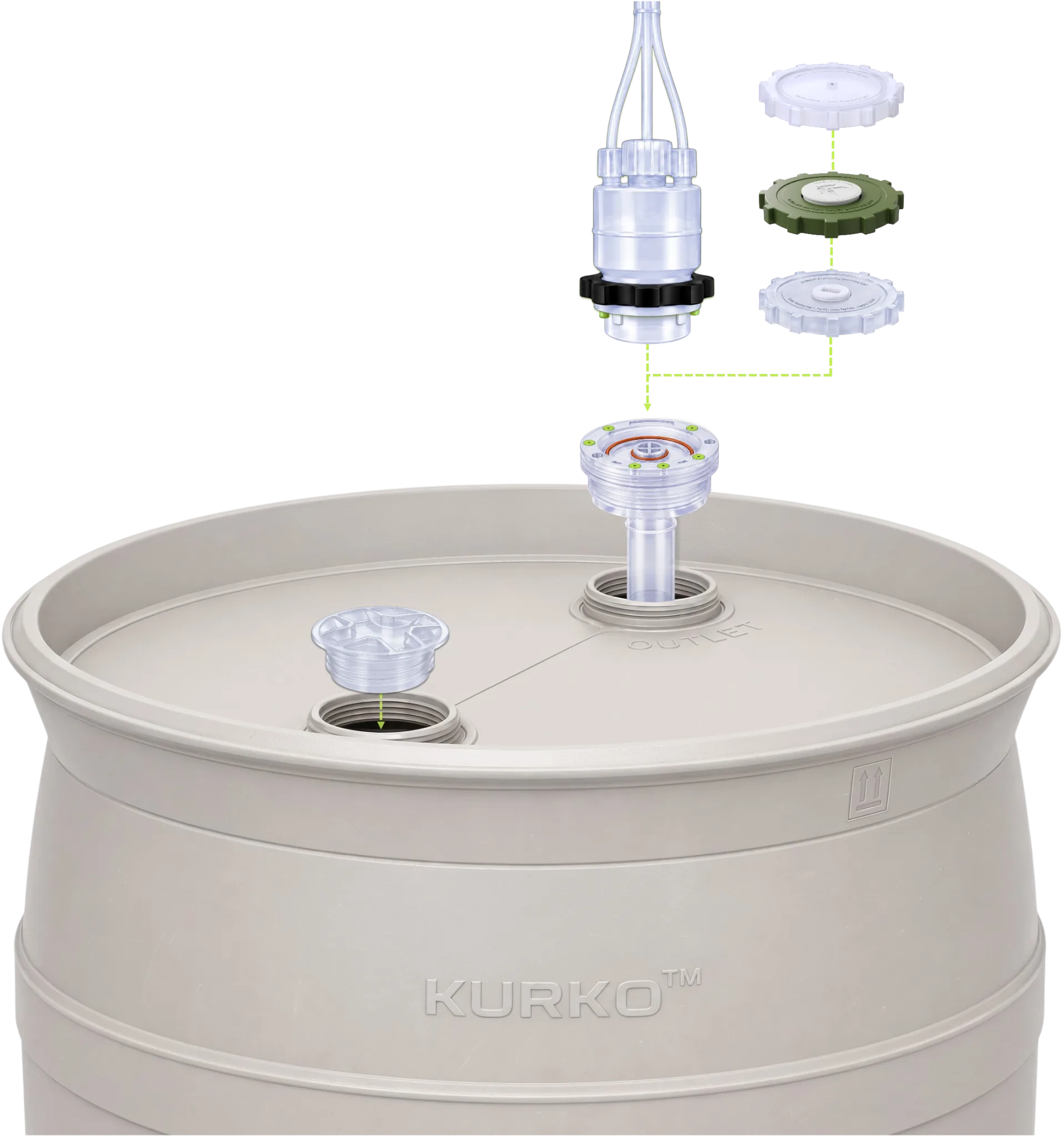

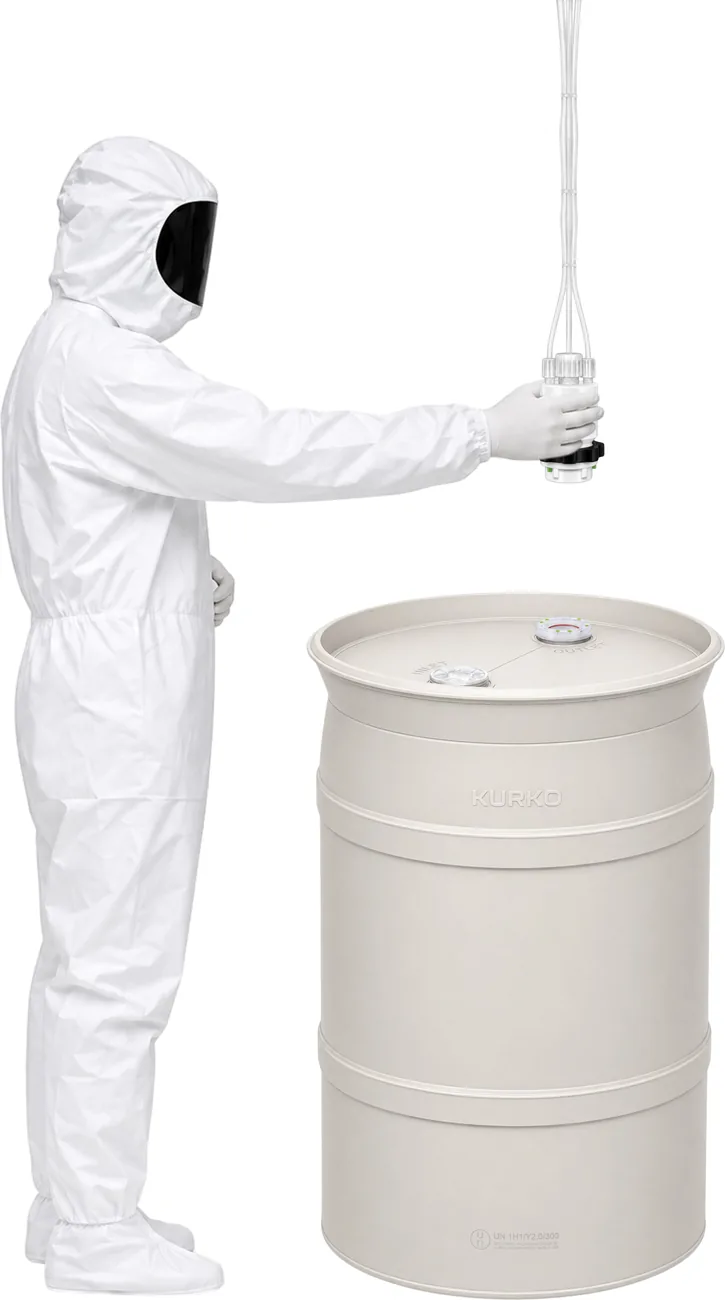

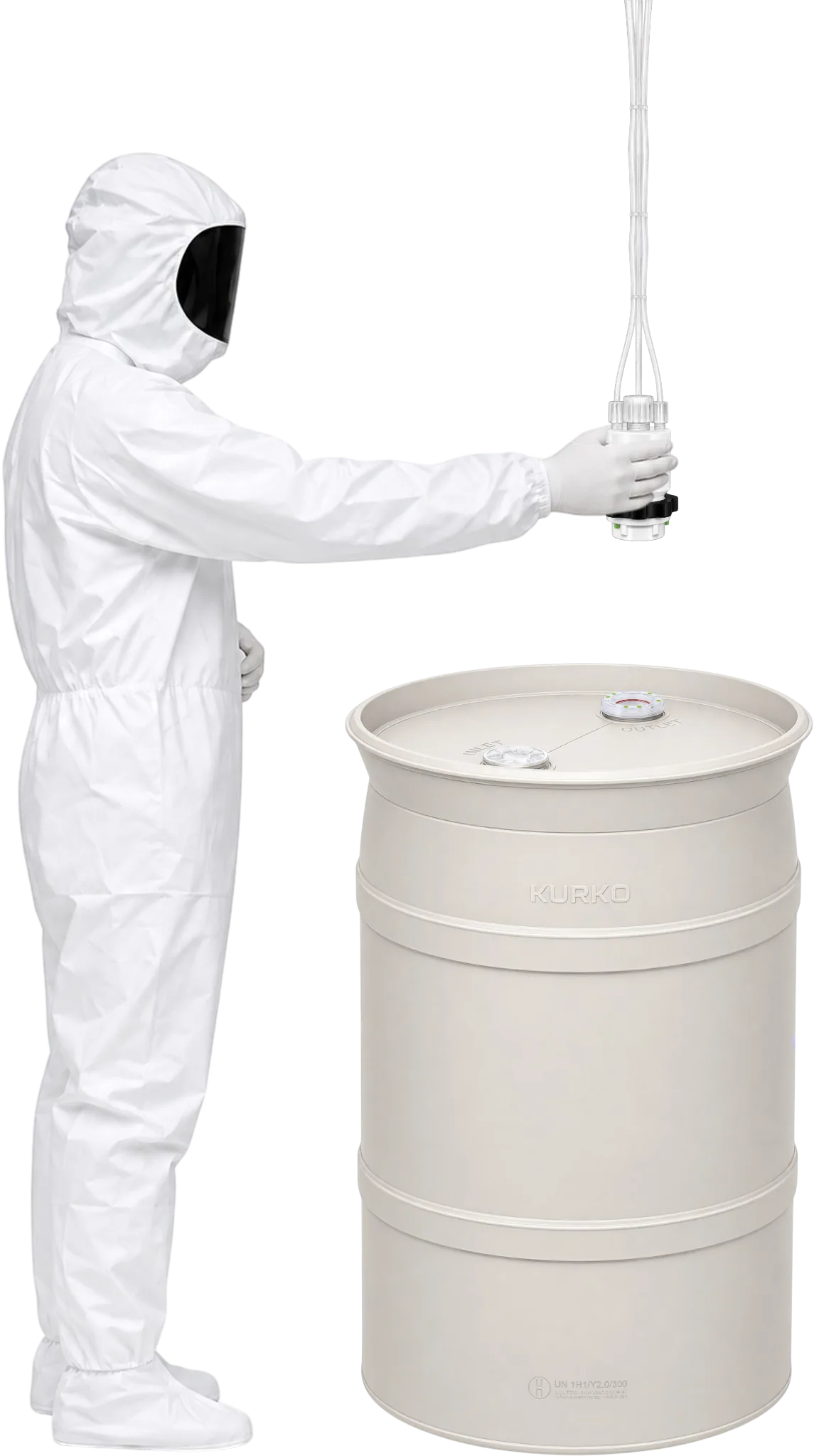

The extended top chime shields installed closures during handling and stacking. The KoLink™ Dispense Head seats only on a matching chemical-service code.

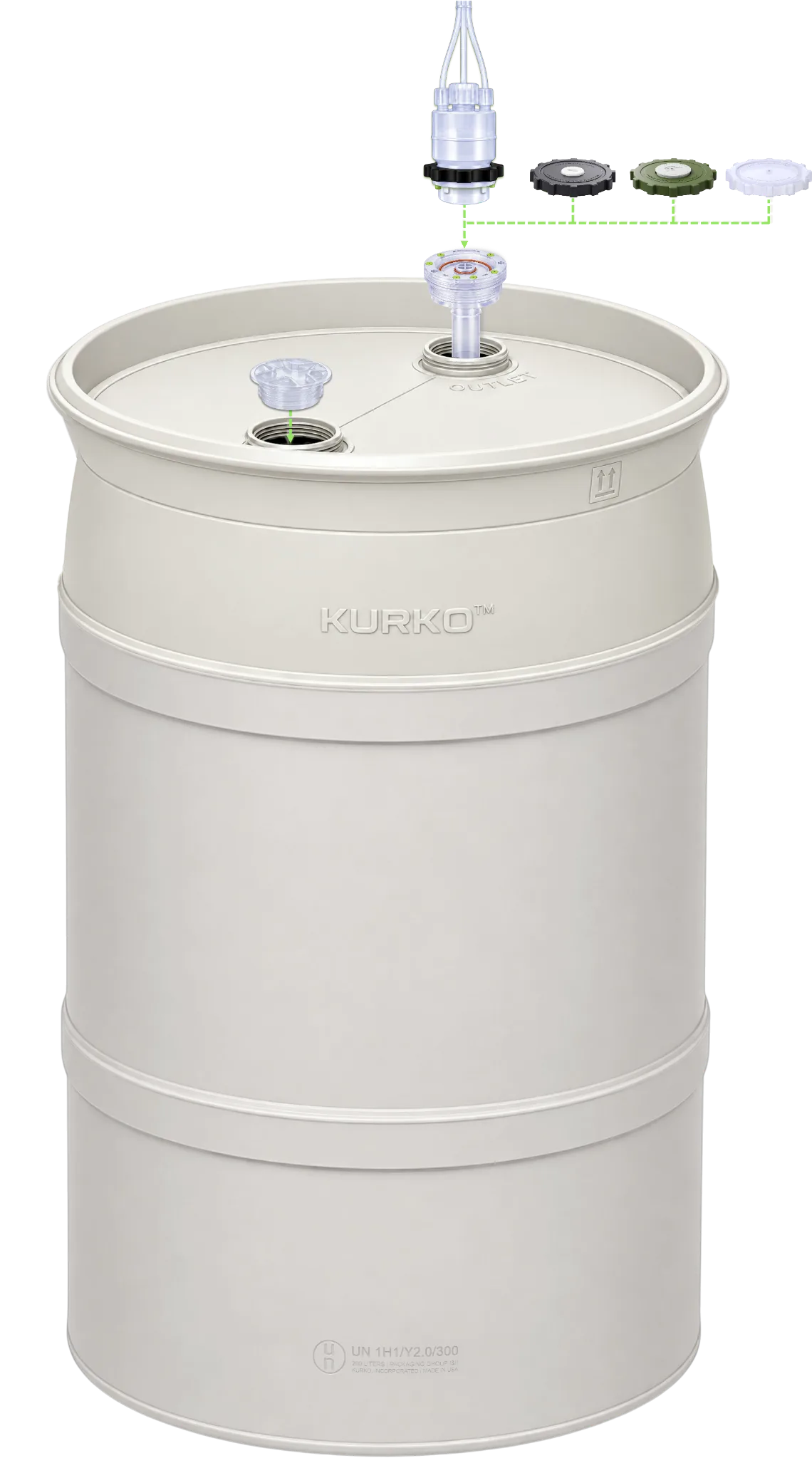

HP55: High-Purity 55-Gal Drum with KoLink™ Fluid Interface & Accessories
Ultra-pure inner layer for chemical contact, structural middle layer, and protective outer skin. Extended chime to guard drum ports & closures.

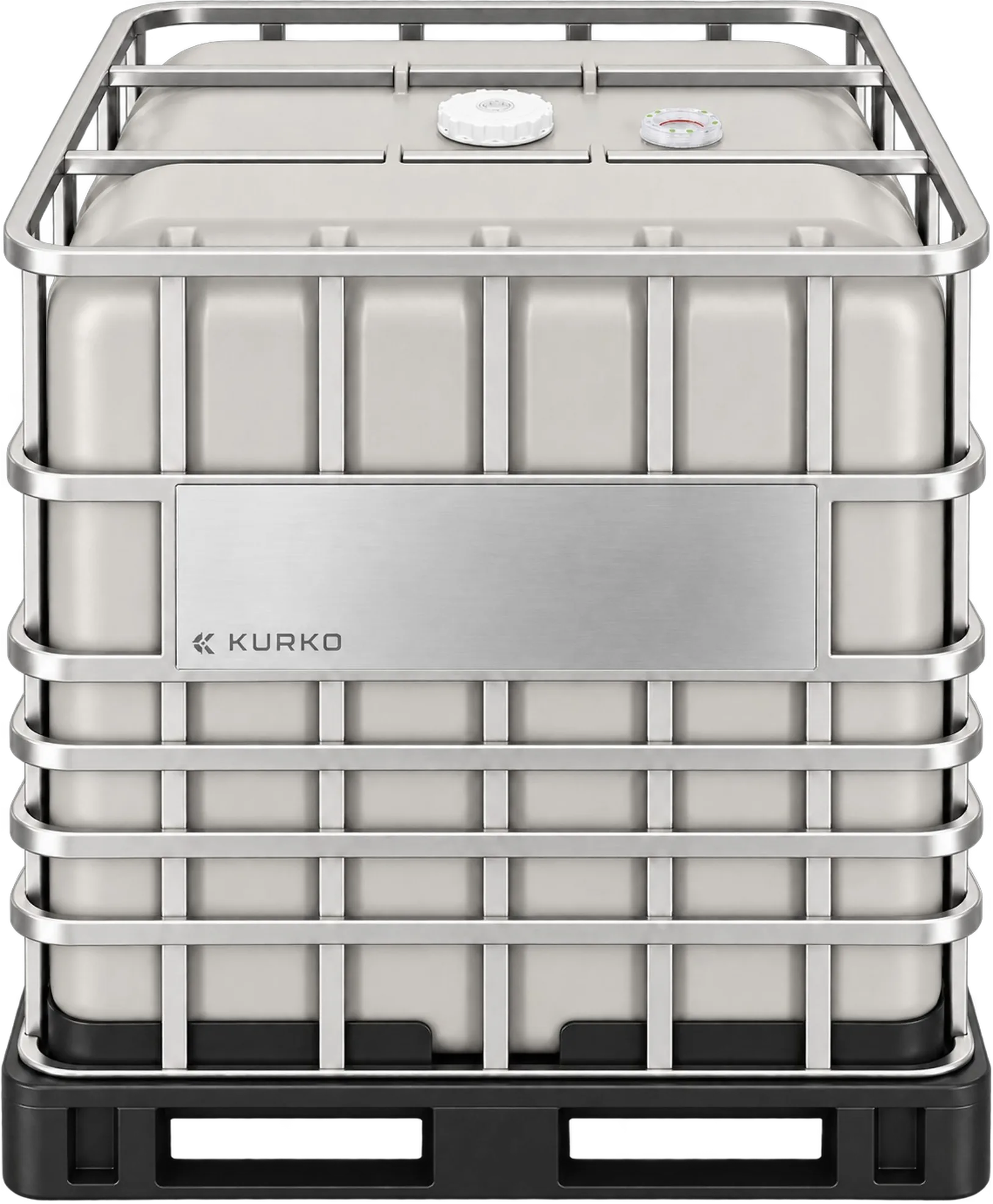

HP55 drums and HP275 IBCs: the lowest particle counts outside Kurko's UP tier. Under 1 ppb extractable trace metals, per element, verified per lot.
Diptube and sump geometry leaves under 200mL in a 55-gallon Kurko drum at empty and under 0.1% of fill volume in Kurko 275 gallon IBCs.

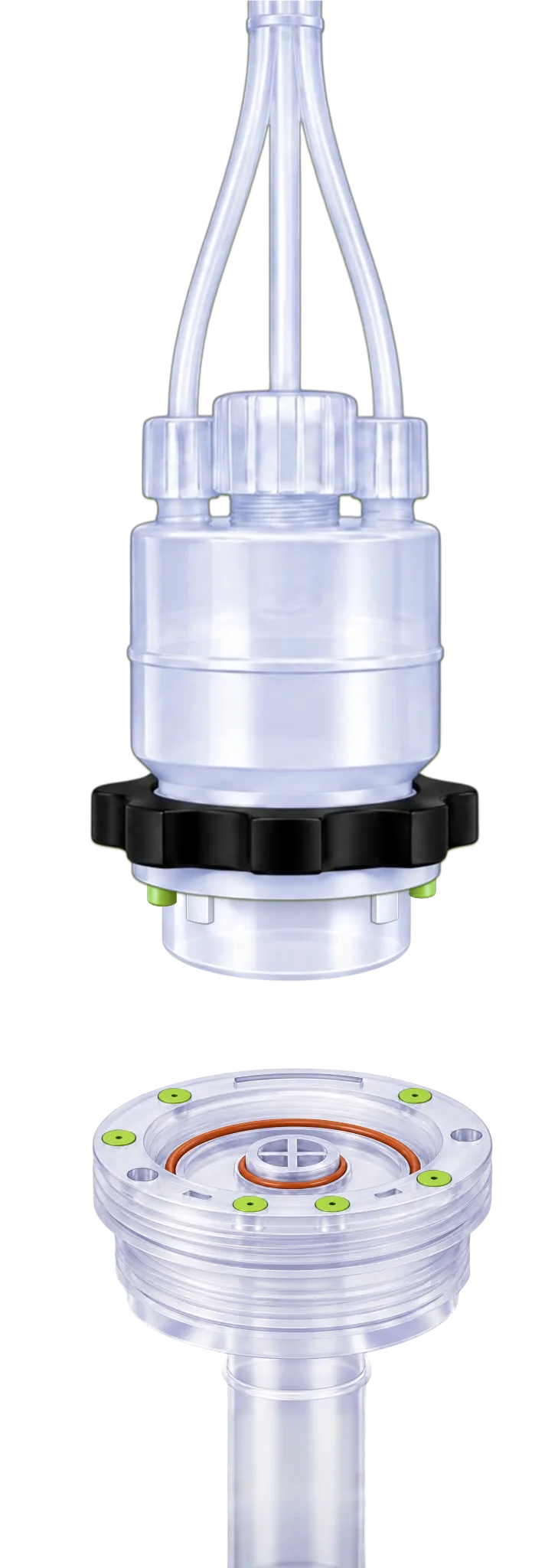

One KoLink™ dispense head and insert, compatible across all 5 containers, take Kurko coding elements to configure the same hardware to any chemical service.
Achieved by one standardized containment system: reconfigurable fill-and-dispense hardware across drums & IBCs, pooled inventory, denser freight.
The HP55 carries aqueous high-purity chemistries for industries that run wet processing one purity step below the semiconductor fab — and for semiconductor chemistries whose specification does not call for the full certificate of analysis. Flammable solvents are outside the HP55's service.
Etch, clean, and texturing chemistries for flat-panel display and solar cell manufacturing.
Acids and bases used in cathode, anode, and electrolyte material processing.
Repackaging of high-purity grades from bulk into 55-gallon lots for downstream customers.
Process and cleaning chemistries where a clean, lot-traceable container is part of the specification.

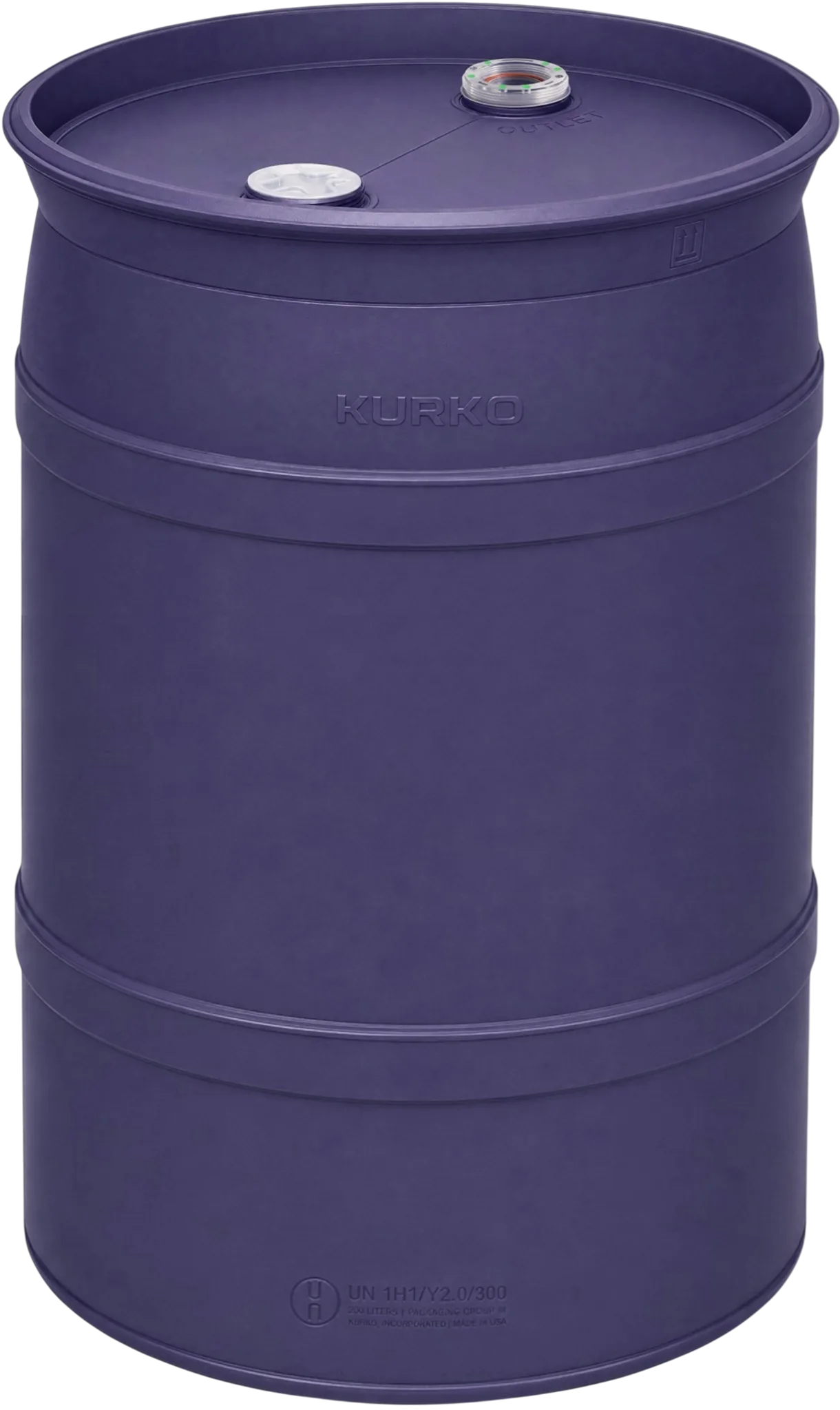

The HP55 and UP55 share the same Tri-Layer wetted path, so compatibility does not change with tier. Service is confirmed per chemistry, concentration, and closure configuration at qualification.
Platform specifications for the HP55 as it ships. Items still in engineering release are marked to be confirmed rather than estimated.
Tri-Layer Construction
The only surface the chemistry touches. Formed from virgin HDPE, it keeps the contact surface clean and consistent from fill through dispense.

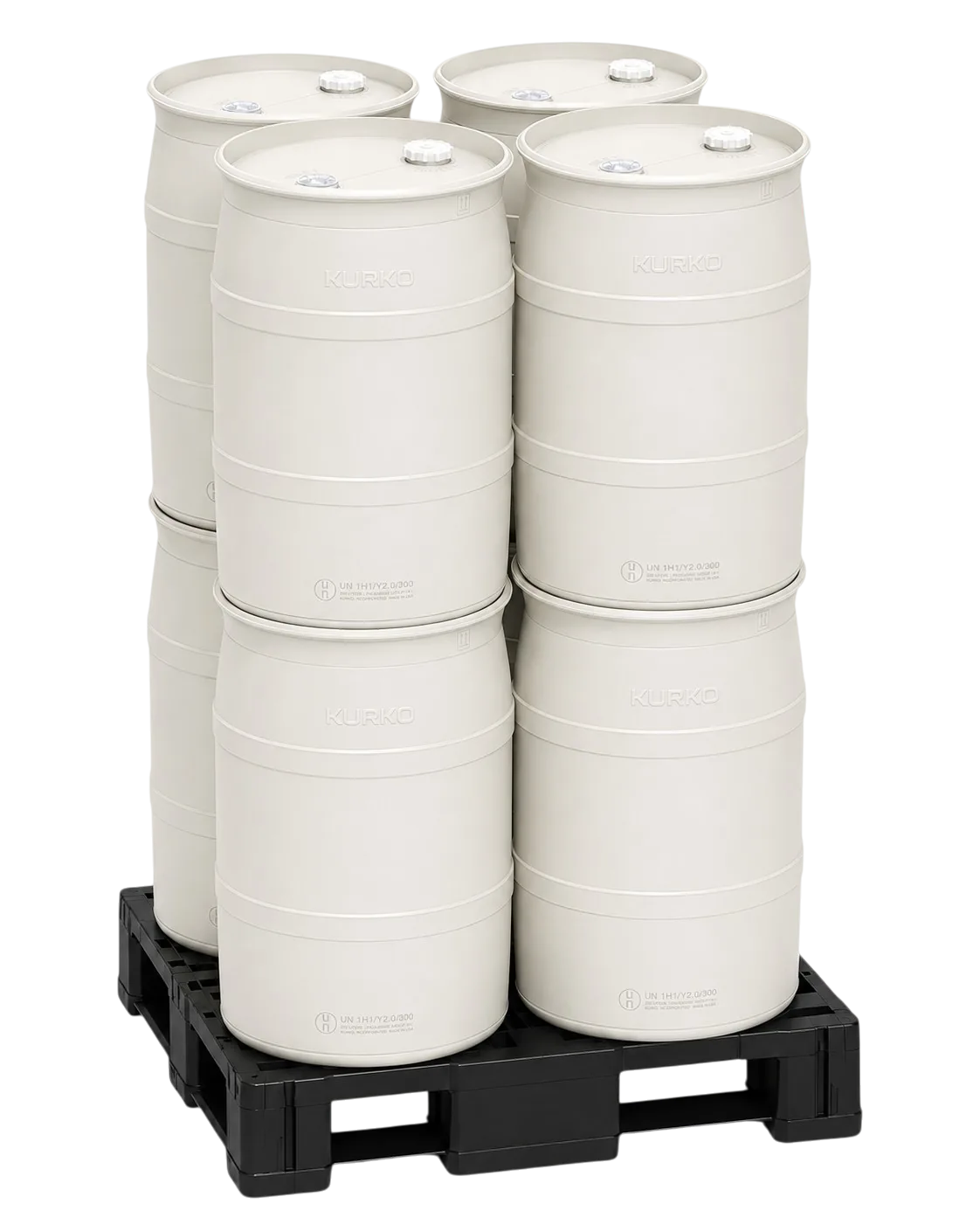

The thickest of the three layers carries the load — stiffness, two-high stacking strength, and impact resistance through filling, handling, and transport.
The exterior takes the environment. UV-stabilized HDPE shields the drum from sunlight and handling wear through staging, transport, and storage.

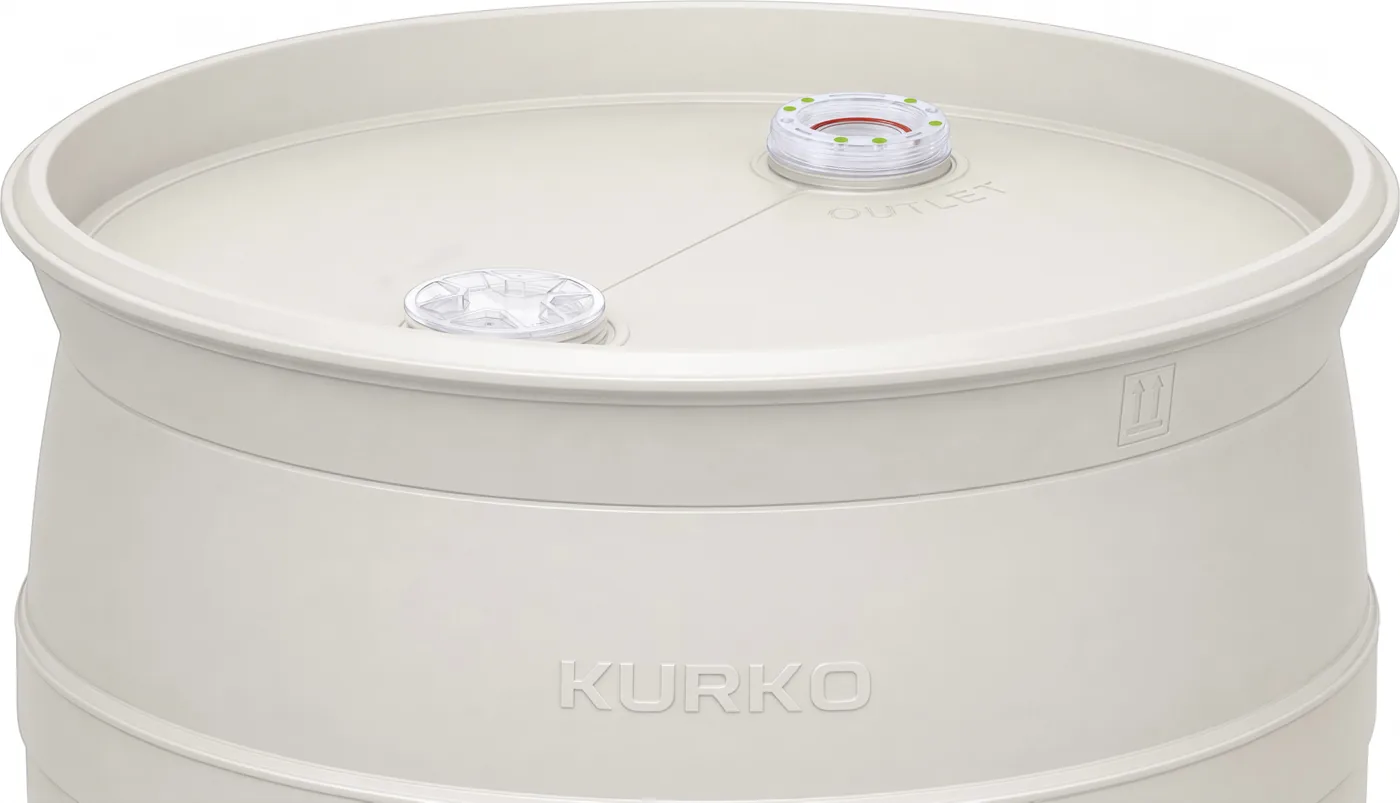

Top-Head Configuration
The 2-inch outlet holds the KoLink™ Keyed Diptube Insert, coded to the drum's assigned chemical service.
The 2-inch inlet handles fill and venting, sealed by a closure assigned per chemistry — sealed, vented, or manual-relief.
The raised rim surrounds the top head — guarding both ports in handling and carrying the load when drums stack two-high.
The serviceable hardware. Both closures and the Keyed Diptube Insert thread out at the top ports for service and coding.
