Components & Accessories

Closures, Vents, and Coding Elements

Transport and vented closures shared across KURKO IBCs and drums, coding rivets and blocker plugs for the KoLink™ interface, and replacement seals for the Diptube Insert.

8 Component Entries · 3 Product FamiliesKURKO Systems / Components

Select a Component · All 8 Entries

5 Closures & Vents2 Coding Elements1 Seal Entry

Closures & Vents01 / 08

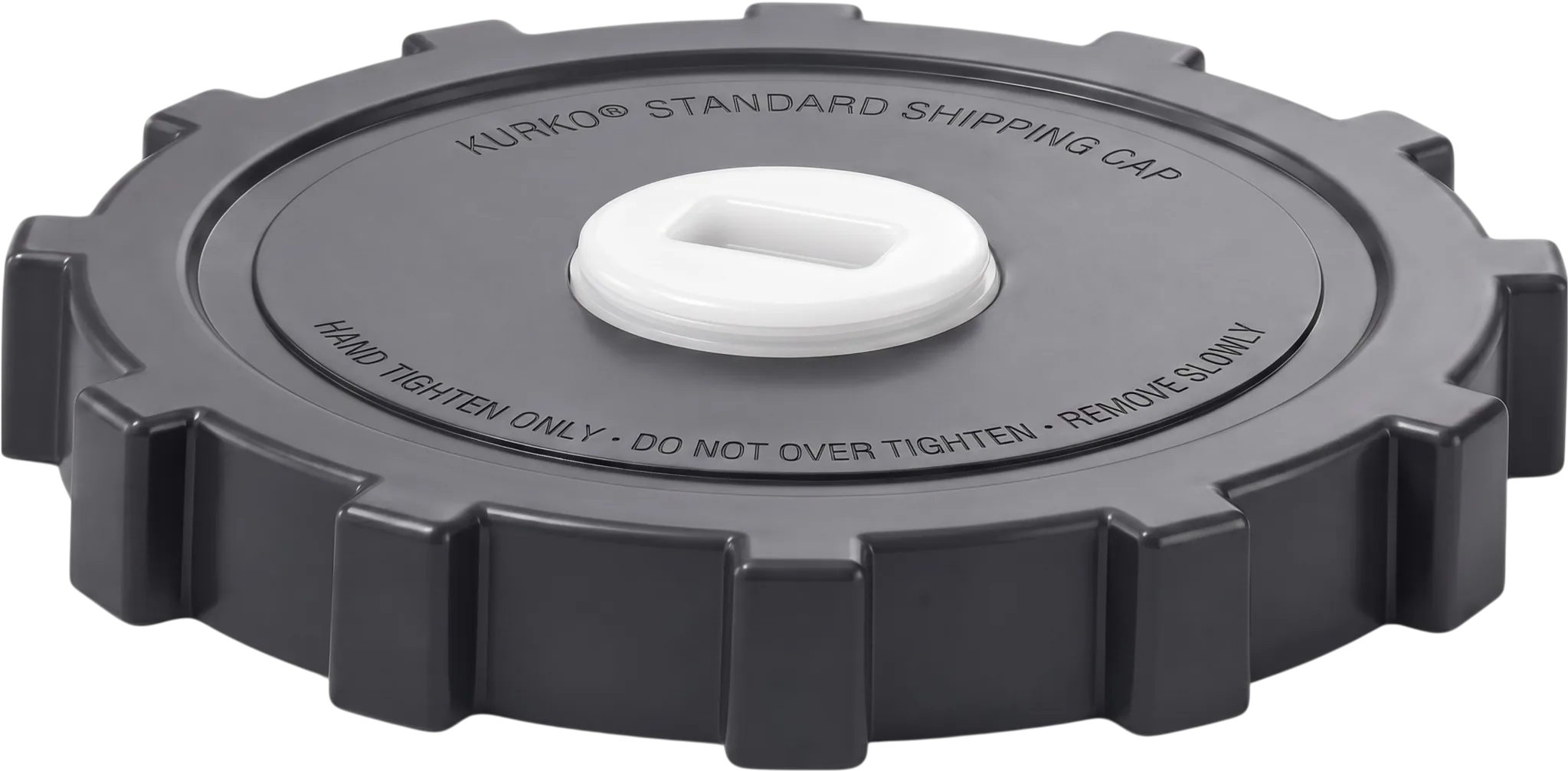

Sealed Transport

2″ Standard Shipping Cap

Sealed transport closure for IBC service ports and drum ports fitted with the KoLink™ Diptube insert. Tamper-evident from fill to point of use.

SKU KCAP-SC02

Technical Specifications

Type: S62×5 modified 2-inch buttress, female cap
Material: HDPE drive shell; sealing element PFA standard, alternate seal materials per chemistry
Seal: Captive sealing element; no O-ring, no elastomers
Vent: None — 100% sealed in transit
Service: Stable, non-outgassing chemistries
Install: Hand-tighten only — do not over-tighten; remove slowly
Fitting: 2-inch connections across Kurko IBCs and drums

Closures & Vents

Shipping caps in three configurations, sealed and vented bung plugs, and the IBC fill-port cap serve KURKO High-Purity (HP) and Ultra-Pure (UP) containers. All 2″ hardware shares the S62×5 thread across IBCs and drums.

Closures & Vents02 / 08

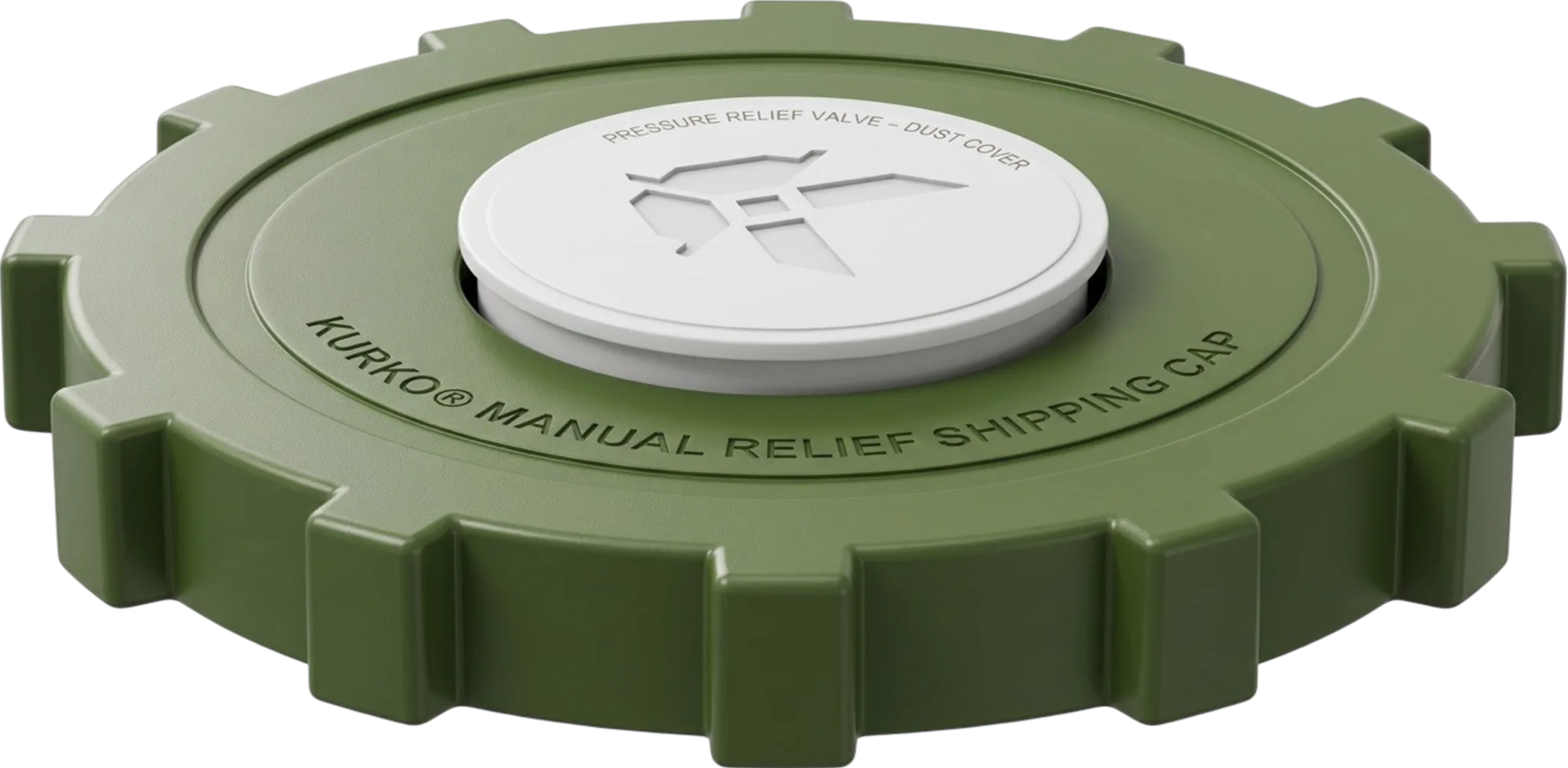

Manual Headspace Relief

2″ Manual Relief Shipping Cap

Manual relief closure for IBC service ports and drum ports fitted with the KoLink™ Diptube insert. Sealed through transit; the consignee vents headspace before opening.

SKU KCAP-MR02

Technical Specifications

Type: S62×5 modified 2-inch buttress, female cap
Material: HDPE drive shell; sealing element PFA standard, alternate seal materials per chemistry
Seal: Captive sealing element; no O-ring, no elastomers
Vent: Captive bleed vent with integral hose barb — sealed until opened
Service: Volatile and outgassing chemistries
Install: Hand tighten only — vent headspace before removing
Fitting: 2-inch connections across Kurko’s IBCs and drums

Closures & Vents03 / 08

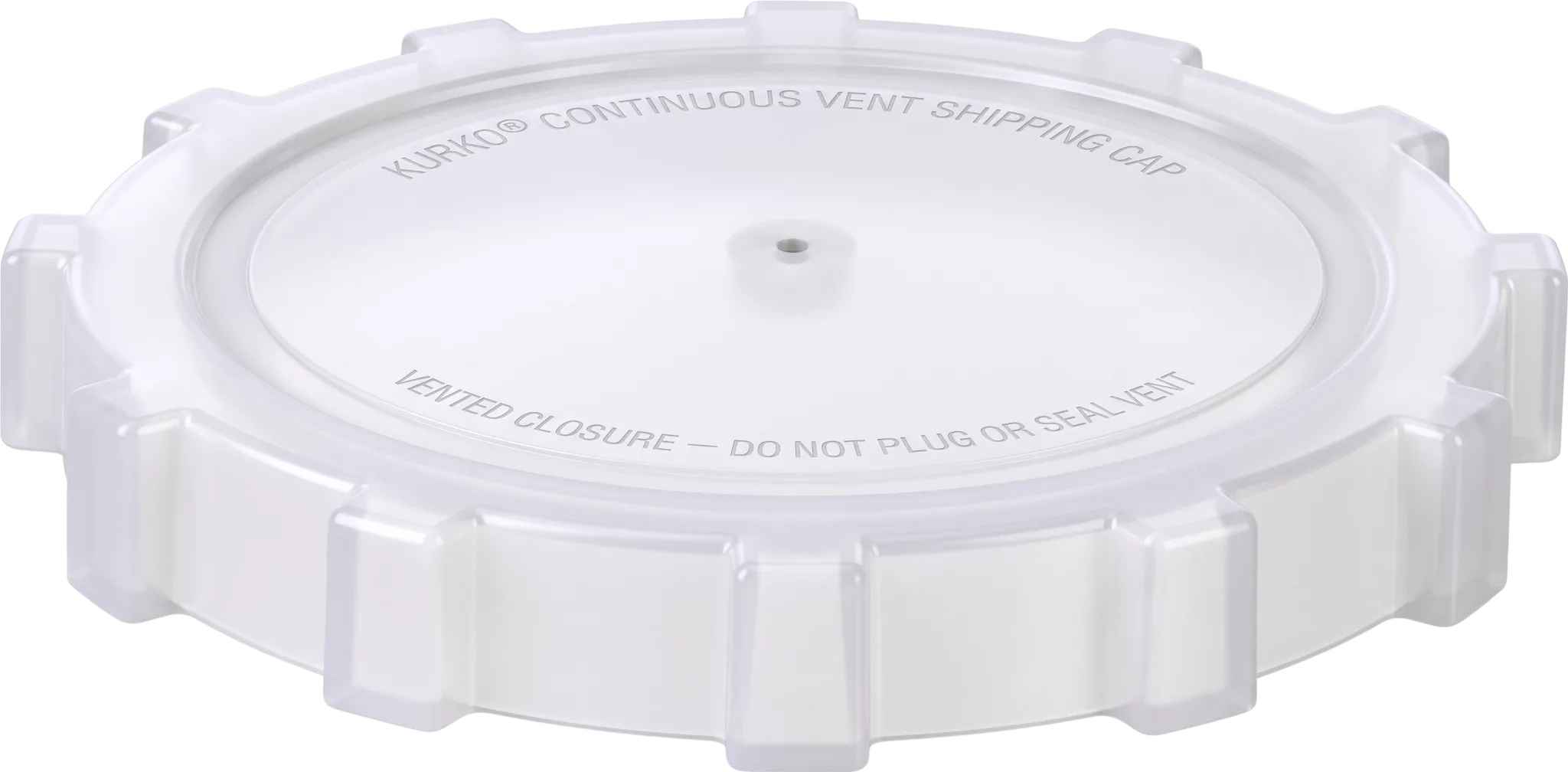

Continuous Gas Relief

2″ Continuous Vent Shipping Cap

Continuous-vent closure for IBC service ports and drum ports fitted with the KoLink™ Keyed Diptube Insert. A hydrophobic ePTFE membrane vents gas through transit and storage and blocks liquid.

SKU KCAP-VC02

Technical Specifications

Type: S62×5 modified 2-inch buttress, female cap
Material: HDPE drive shell; sealing element PFA standard, alternate seal materials per chemistry
Seal: Captive sealing element; no O-ring, no elastomers
Vent: Hydrophobic ePTFE membrane — continuous gas relief, blocks liquid
Service: H₂O₂ & gas-generating chemistries
Install: Hand-tighten only — do not plug or seal the vent
Fitting: 2-inch connections across Kurko’s IBCs and drums

Closures & Vents04 / 08

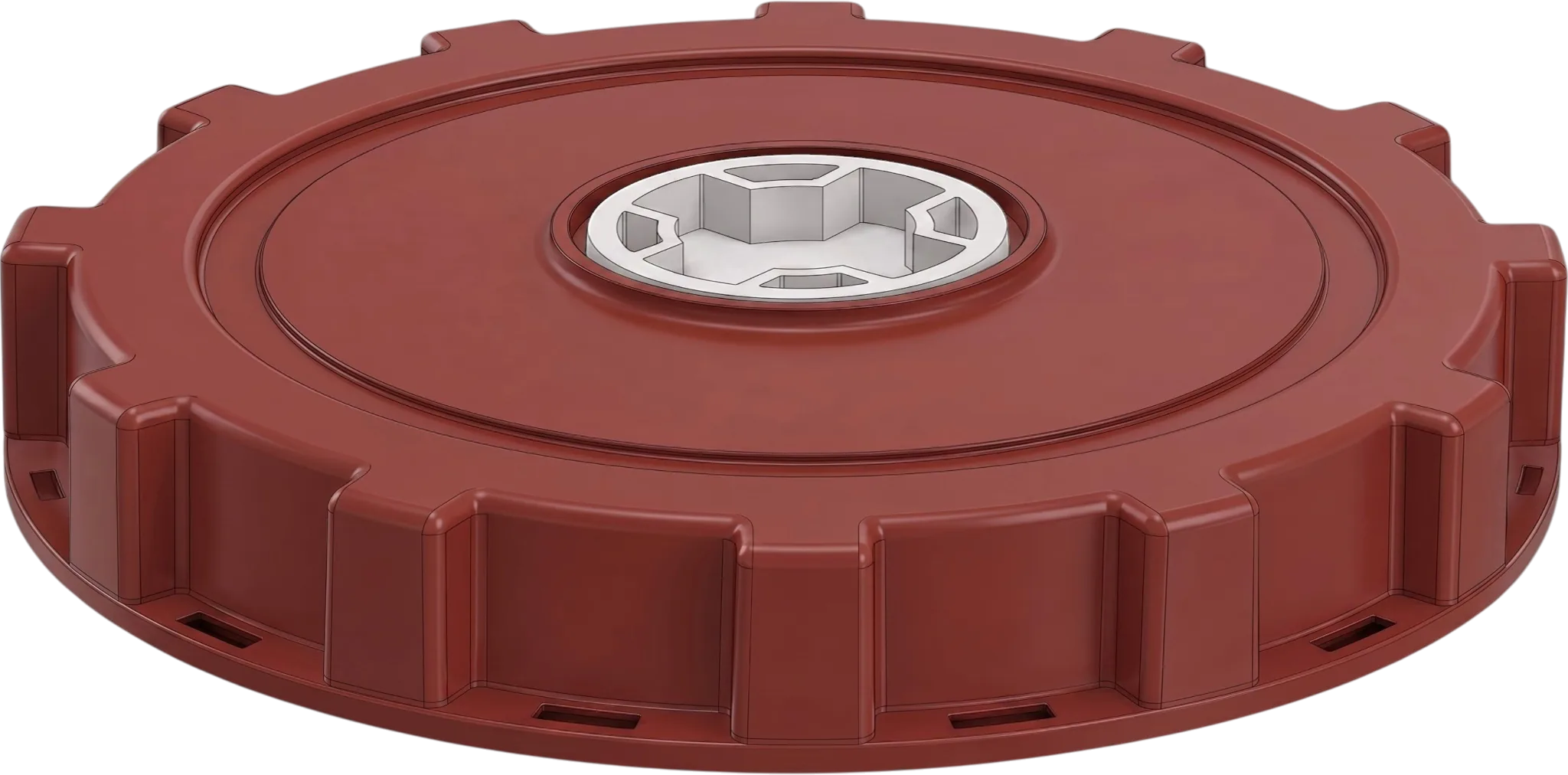

IBC Fill-Port Closure

6″ Standard IBC Shipping Cap

Sealed transport closure for the 6-inch fill port on Kurko IBCs, with a 2-inch threaded center opening. A PFA-encapsulated O-ring seals against the liner neck land.

SKU KCAP-SH06

Technical Specifications

Type: S160×7 6-inch buttress closure, female cap; 2″ center port
Material: UHP HDPE; fluoropolymer per chemistry service
Seal: PFA-encapsulated O-ring — elastomer energizer isolated from product contact
Vent: Sealed cap body — venting through the 2″ center port with the vented 2″ bung plug
Service: All chemistries — gas management at the 2-inch center connection port
Install: Closing torque per Kurko closure instructions
Fitting: Kurko HP275 & UP275 IBCs; 6″ ports

Closures & Vents05 / 08

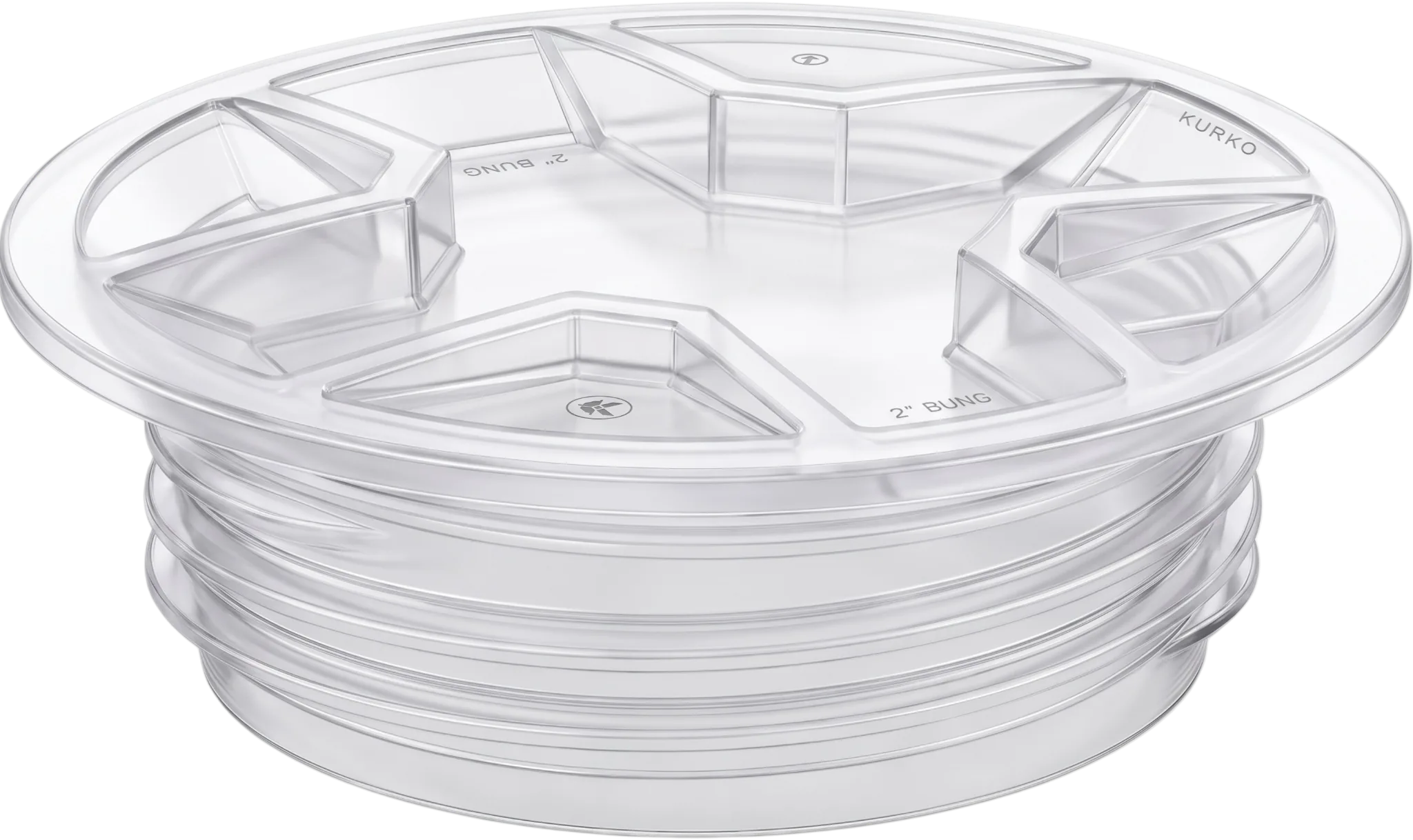

Direct Port Closure

2″ Threaded Bung Plugs

Sealed closure for S62×5 drum and IBC ports running without the KoLink™ Diptube insert. Also available vented for gassing chemistries.

SKU KCAP-BP02 · Vented SKU KCAP-BV02

Technical Specifications

Type: S62×5 modified 2-inch buttress, male bung plug
Material: UHP HDPE; fluoropolymer model available per chemistry service
Seal: Fluoropolymer-encapsulated O-ring — elastomer isolated from wet chemicals
Vent: Sealed standard; vented available — hydrophobic ePTFE membrane
Service: Stable chemistries sealed; gassing service with the vented option
Install: Recessed drive pockets — installs with cap torque tool
Fitting: Open S62×5-compatible ports across Kurko drums and IBCs

KoLink™ Coding Elements06 / 08

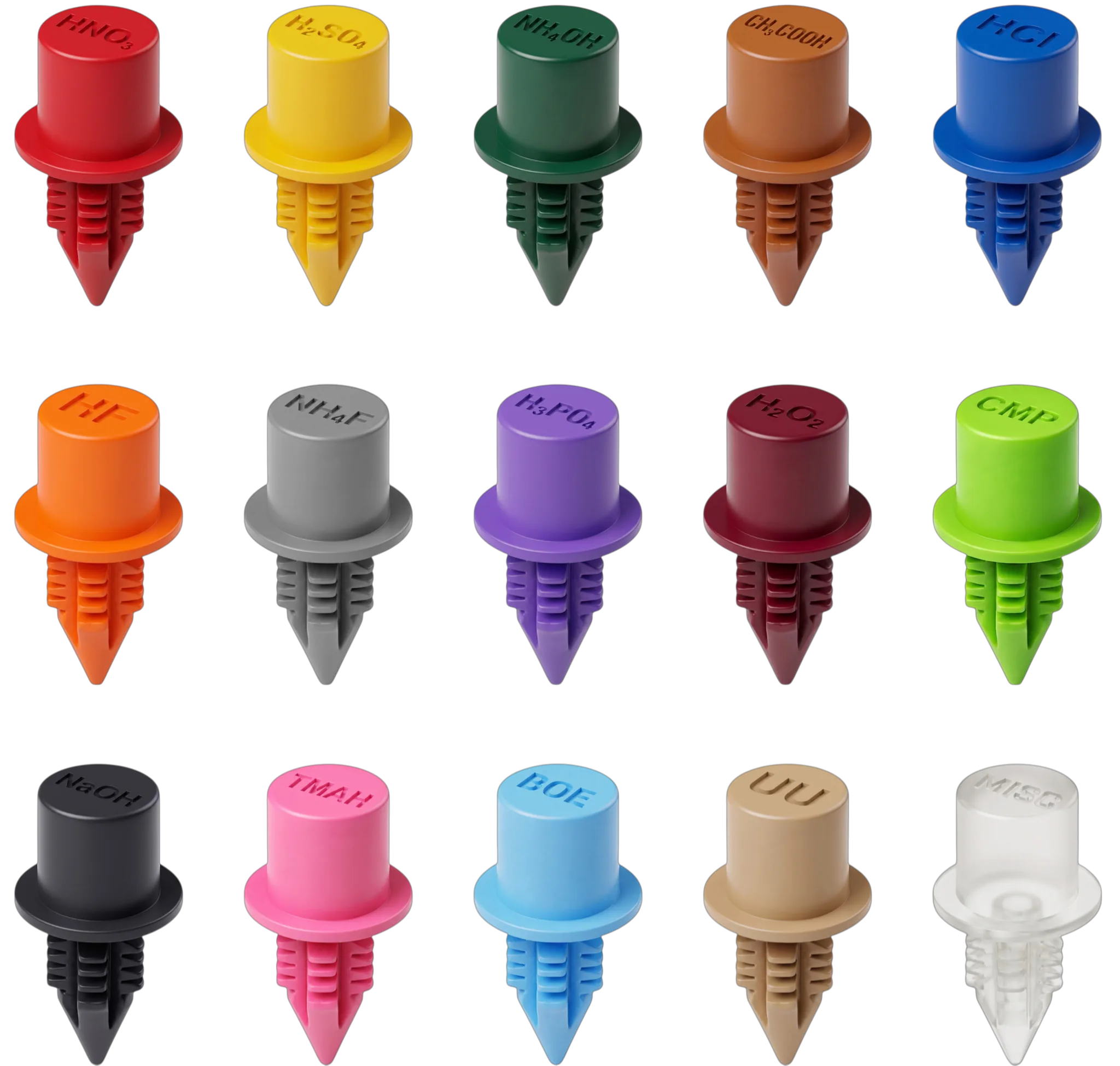

Dispense Head (DH)

Dispense Head Push-In Rivets

Press-in rivets that set the dispense-head side of the KoLink™ code across the eight-position collar. Every head ships identical; rivets assign the code.

SKU KRIV-DH-[CHEMICAL SERVICE]

Technical Specifications

Safety: Color coding is the visual reference; geometry enforces — a mismatched pair will not seat
Installation: Tool-free press-in retention — locked once seated; tamper-resistant options available
Compatibility: All KoLink™ dispense heads carry the same 8-position collar — codes standard or assigned
Material: Push-In Rivets available in high-density polyethylene, nylon, or fluoropolymer

15 illustrated variants. The interface has 8 coding positions; the illustration count is not a count of positions or combinations.

One Complementary Interface

Press-fit rivets on the Dispense Head (DH) and blocker plugs on the Diptube Insert (DT) set complementary mechanical codes across eight positions. A matched pair seats and flows; a mismatch cannot seat or dispense.

KoLink™ Coding Elements07 / 08

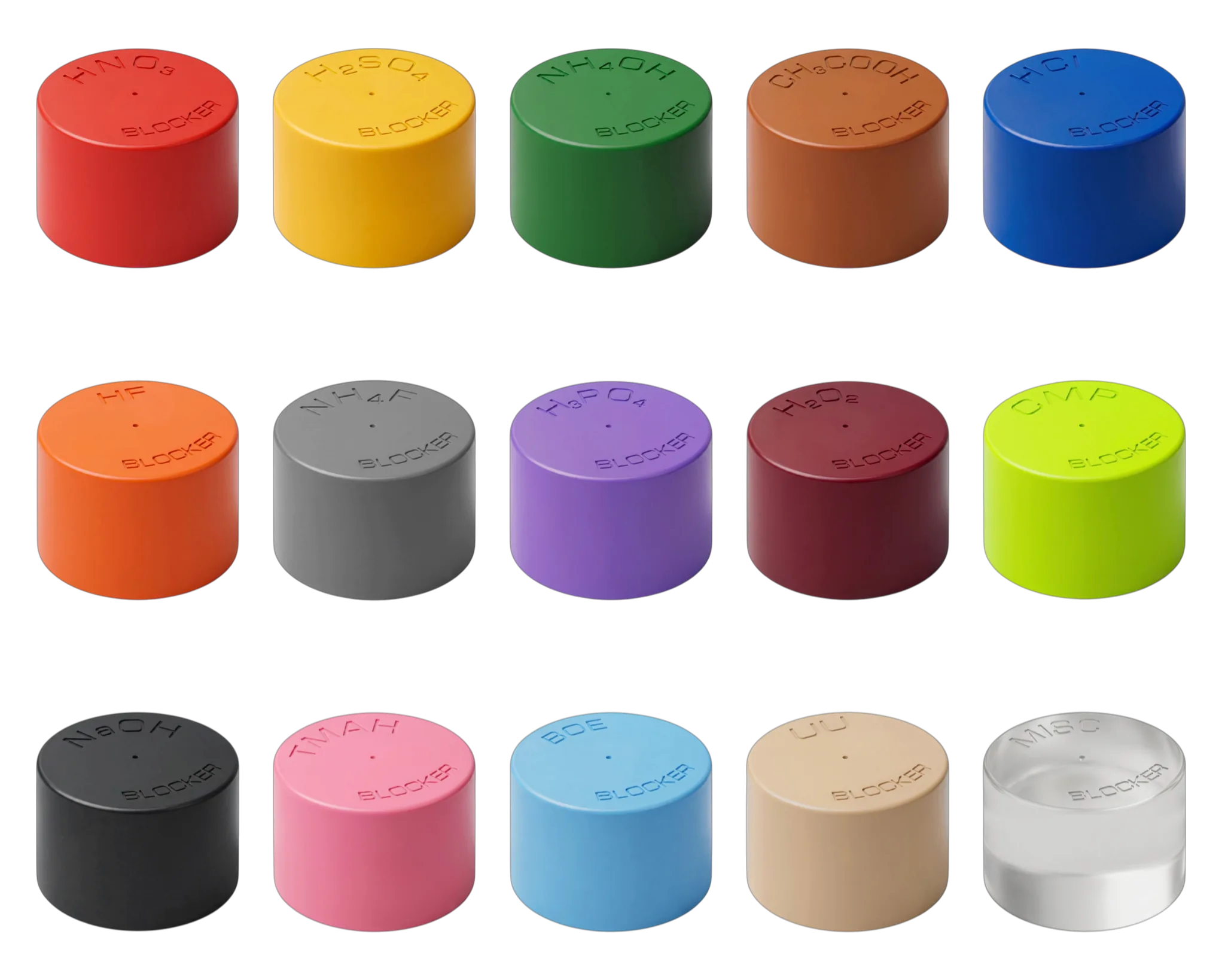

Diptube Insert (DT)

Diptube Insert Blocker Plugs

Press-in plugs that set the insert side of the KoLink™ code across the eight-position ring. Every blank insert ships identical; blockers assign the code.

SKU KBLK-DT-[CHEMICAL SERVICE]

Technical Specifications

Safety: Color coding is the visual reference; geometry enforces — a mismatched pair will not seat
Installation: Tool-free press-in retention — plugs fill every position outside the code
Compatibility: KoLink™ diptubes carry the same 8-position ring across IBC and drum lengths; codes are standard or assigned
Material: Blocker Plugs available in high-density polyethylene, nylon, or fluoropolymer

15 illustrated variants. The interface has 8 coding positions; the illustration count is not a count of positions or combinations.

One Complementary Interface

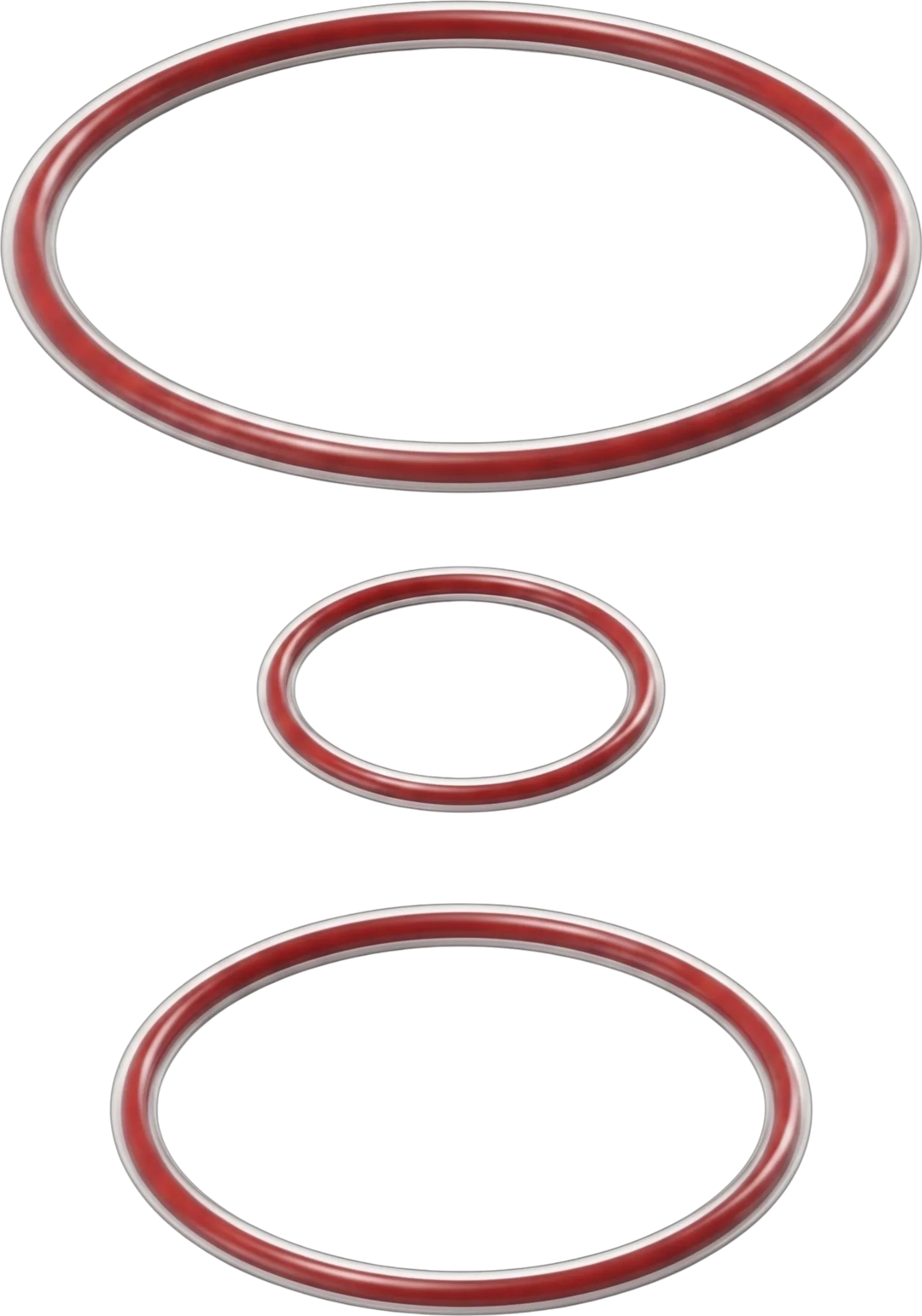

Replacement Seals08 / 08

KoLink™ Service Parts

O-Ring Seal Replacement Parts

Service replacement seals for the three ports of the KoLink™ Keyed Diptube Insert — gas, vent/return, and chemical dispense. FEP-encapsulated silicone core; only fluoropolymer touches the chemistry.

Technical Specifications

Outer Port Seal	57.5 × 3.3 mm — gas / pressurization circuit	SKU: KORS01-OP
Middle Port Seal	37.0 × 3.6 mm — vent / return circuit	SKU: KORS02-MP
Inner Port Seal	22.4 × 2.5 mm — chemical dispense path	SKU: KORS03-IP
Material	FEP-encapsulated silicone-core O-rings
Temperature Rating	−60 °C to +205 °C — O-ring material rating, not a system rating

Sizes are inner diameter × cross-section.

1 of 8

Catalog images are shown at different display scales and do not indicate relative physical size.
