ULTRA-PURE & HIGH-PURITY
55-GALLON TRILAYER HDPE DRUMS

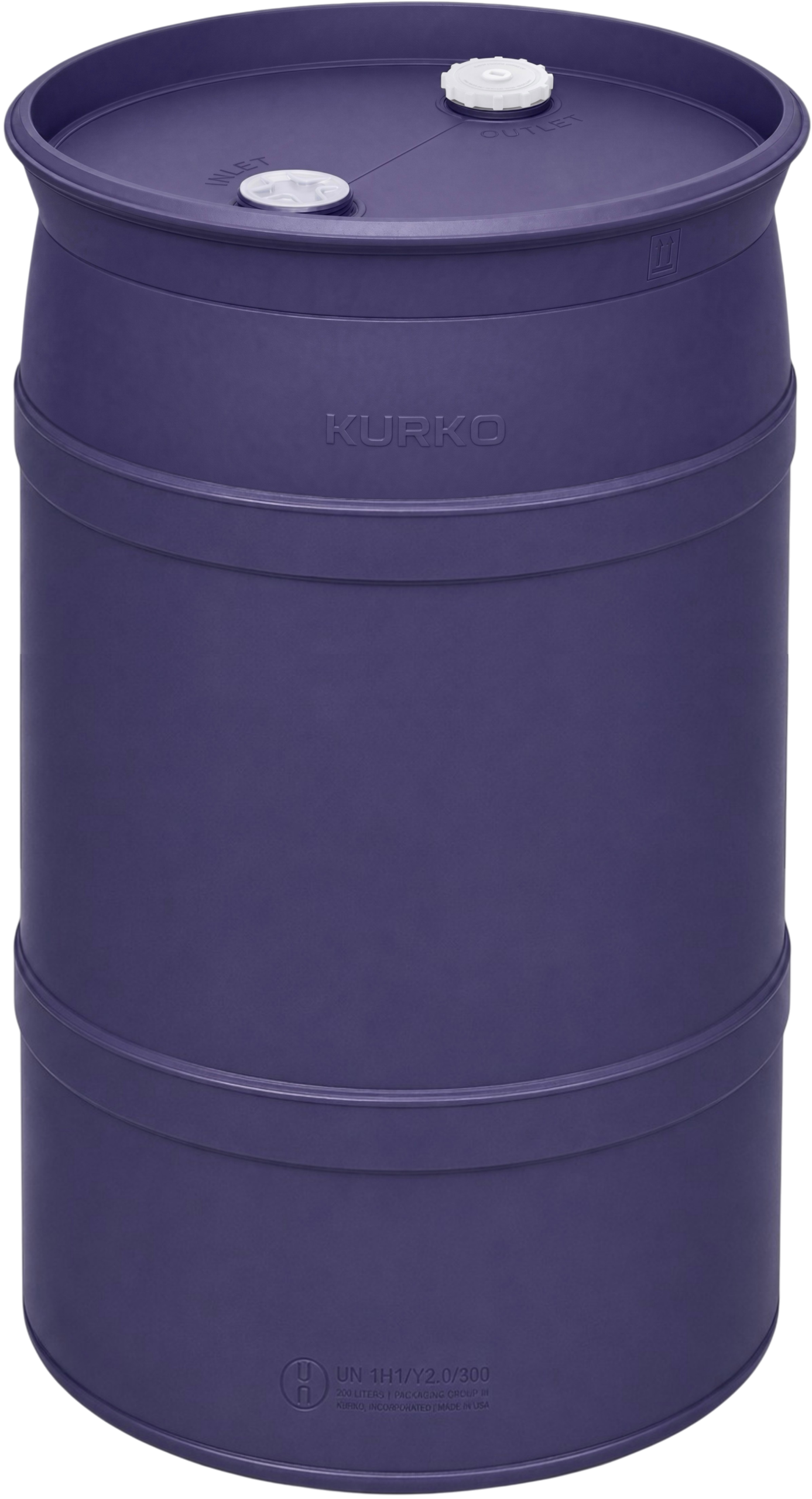

KURKO ULTRA-PURE SEMICONDUCTOR DRUM
55-Gallon Ultra Pure Trilayer HDPE Construction | Signature Indigo
The KURKO UP55 is a 55-gallon tri-layer HDPE drum released to semiconductor grade. Purity is built into the construction: the chemistry touches only a virgin HDPE layer, coextruded with the structural core and outer layer in one continuous blow-molded body. Each drum is molded and capped in cleanroom conditions and ships in signature indigo with a per-lot certificate of analysis, ready for producer fill-line qualification.
- Seamless wetted body — formed through one continuous blow-molding process, with no seams or welds in contact with the chemistry.
- Released to stringent parts-per-trillion trace-metal limits, verified by ICP-MS testing — shipped with a complete Certificate of Analysis (CoA).
- Accepts KoLink™ Dispense Head & Keyed Diptube for chem-matched, cross-connection-safe dispensing; standard unkeyed dip tubes available.
- Extended top chime provides added protection for closures and installed dispense components during handling, transport, and stacking.
UP55 DRUM SPECIFICATIONS
The UP55 is Kurko’s semiconductor release tier. Geometry, closures, and freight profile are identical to the HP55 — qualify the platform once and choose a tier per chemistry. Pairs with the KoLink™ interface for keyed, cross-connection-safe dispense, or accepts a standard unkeyed dip tube. For chemistries that don’t need the full semiconductor-grade certificate of analysis, see the HP55 below.
| Capacity | 55 Gallons | 208 Liters |
| Model Type | Ultra-Pure Trilayer HDPE 55-Gallon Drum, Indigo |
| Dimensions | Height: 39″H (991 mm) | Diameter: 23 inches (584 mm) |
| Top Ports | Two-Inch Outlet and Vent Necks; S62×5 Modified Buttress |
| Trace Metals | ≤100 ppt Trace Metals; ICP-MS Tested and Certified Each Lot |
| Quality Control | Every Drum Molded and Capped in ISO Class 6 Cleanroom |
| Certification | UN 1H1/Y2.0/300; for Transportation of Hazardous Liquids |

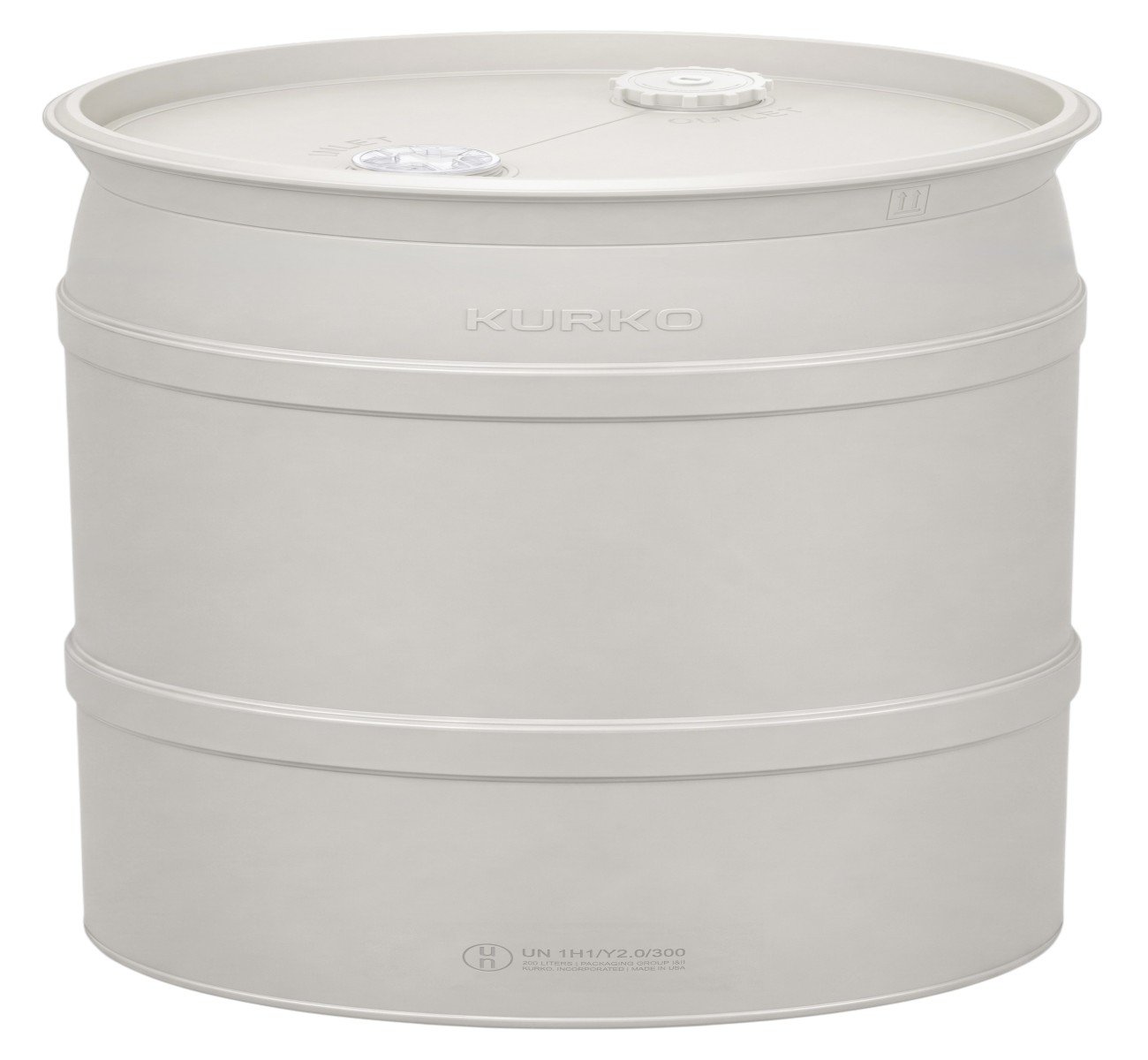

KURKO STANDARD HIGH-PURITY DRUM
KURKO STANDARD HIGH-PURITY DRUM
The KURKO HP55 is a 55-gallon Trilayer HDPE drum released one tier below semiconductor grade, for chemistries that need particle and trace-metal control without the full semiconductor certificate of analysis. It shares the UP55 construction: the chemistry touches only the virgin inner layer of one continuous blow-molded body. Every drum is molded and capped in cleanroom conditions and ships in natural unpigmented HDPE with a per-lot certificate of analysis, ready for fill-line qualification at the producer.
- Seamless wetted body — produced through one continuous blow-molding process, with no seams or welds anywhere the chemistry makes contact.
- Released to parts-per-billion trace-metal limits, verified by ICP-MS testing — shipped with a complete CoA for non-semiconductor wet chemical service.
- Accepts KoLink™ Keyed Dispense Head & Diptube for chemistry-matched, cross-connection-safe dispensing; standard unkeyed Diptubes available.
- Extended top chime provides added protection for closures and installed dispense components during handling, transport, and stacking.
HP55 DRUM SPECIFICATIONS
The HP55 releases one tier below semiconductor grade, for chemistries that need particle and trace-metal control without a full semiconductor-grade certificate of analysis — including but not limited to Aerospace, Nuclear, Flat-Panel Display, Pharmaceutical, Medical, Biotech, Life Sciences, EV Battery, and Solar & Photovoltaic. Geometry, closures, and freight profile are identical to the UP55 — qualify the platform once and choose a tier per chemistry. Pairs with the KoLink™ interface for keyed, cross-connection-safe dispense, or accepts a standard unkeyed dip tube.
| Capacity | 55 Gallons | 208 Liters |
| Model Type | High-Purity Trilayer HDPE 55-Gallon Drum, Natural |
| Dimensions | Height: 39″H (991 mm) | Diameter: 23 inches (584 mm) |
| Top Ports | Two-Inch Outlet and Vent Necks; S62×5 Modified Buttress |
| Trace Metals | ≤1 ppb Trace Metals; ICP-MS Tested and Certified Each Lot |
| Quality Control | Every Drum Molded and Capped in ISO Class 6 Cleanroom |
| Certification | UN 1H1/Y2.0/300; for Transportation of Hazardous Liquids |
![②Ⓐ Kurko UP55 [Drum Page - Section 2A]](https://kurkoinc.com/wp-content/uploads/2026/08/②Ⓐ-Kurko-UP55-Drum-Page-Section-2A.jpg)
![②Ⓑ Kurko HP55 [Drum Page - Section 2B]](https://kurkoinc.com/wp-content/uploads/2026/08/②Ⓑ-Kurko-HP55-Drum-Page-Section-2B.jpg)

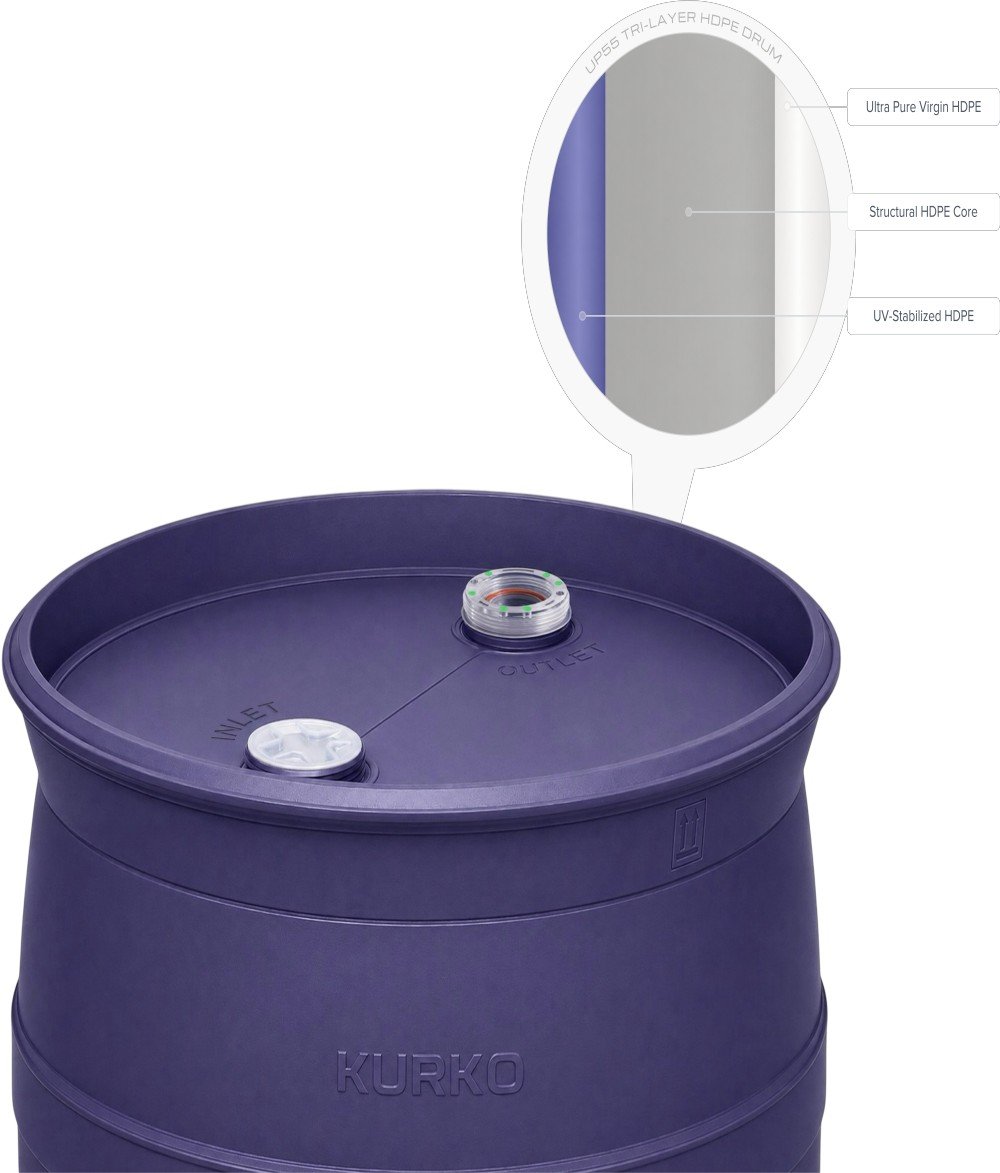

CONSTRUCTION
THREE CO-EXTRUDED LAYERS
Ultra-Pure Interior Wetted Layer
The only surface the chemistry ever touches. Formed from virgin ultra pure HDPE, it keeps the contact surface clean and consistent from fill through dispense.
Structural Center Core Layer
The core carries the load. The thickest of the three layers, it gives the drum its stiffness, stacking strength, and impact resistance through filling, handling, and transport.
Protective Outer Layer
The exterior takes the environment. UV-stabilized HDPE shields the drum from sunlight and handling wear through staging, transport, and storage — so the layers beneath keep doing their jobs.
