ALL STAINLESS STEEL
330-GALLON IBC
KURKO ALL STAINLESS-STEEL IBC
Higher Performance, Less Weight
A 1.5–2.0 mm welded 316 vessel delivers stainless barrier performance without legacy heavy-gauge weight — lighter empties raise return-truck density and cut repositioning cost.
Higher Performance, Less Weight
A 1.5–2.0 mm welded 316 vessel delivers stainless barrier performance without legacy heavy-gauge weight — lighter empties raise return-truck density and cut repositioning cost.
Standard Equipment, IBC Footprint
Four-way forklift entry and a 48 × 40 in footprint run on existing handling, filling, and dispense infrastructure; no requalification of equipment or workflow.
Serviceable by Component
Cage, base, valve, and vessel are individually inspectable and serviceable — routine handling wear doesn't retire the stainless asset prematurely.
KURKO ALL-STAINLESS IBC SPECIFICATIONS

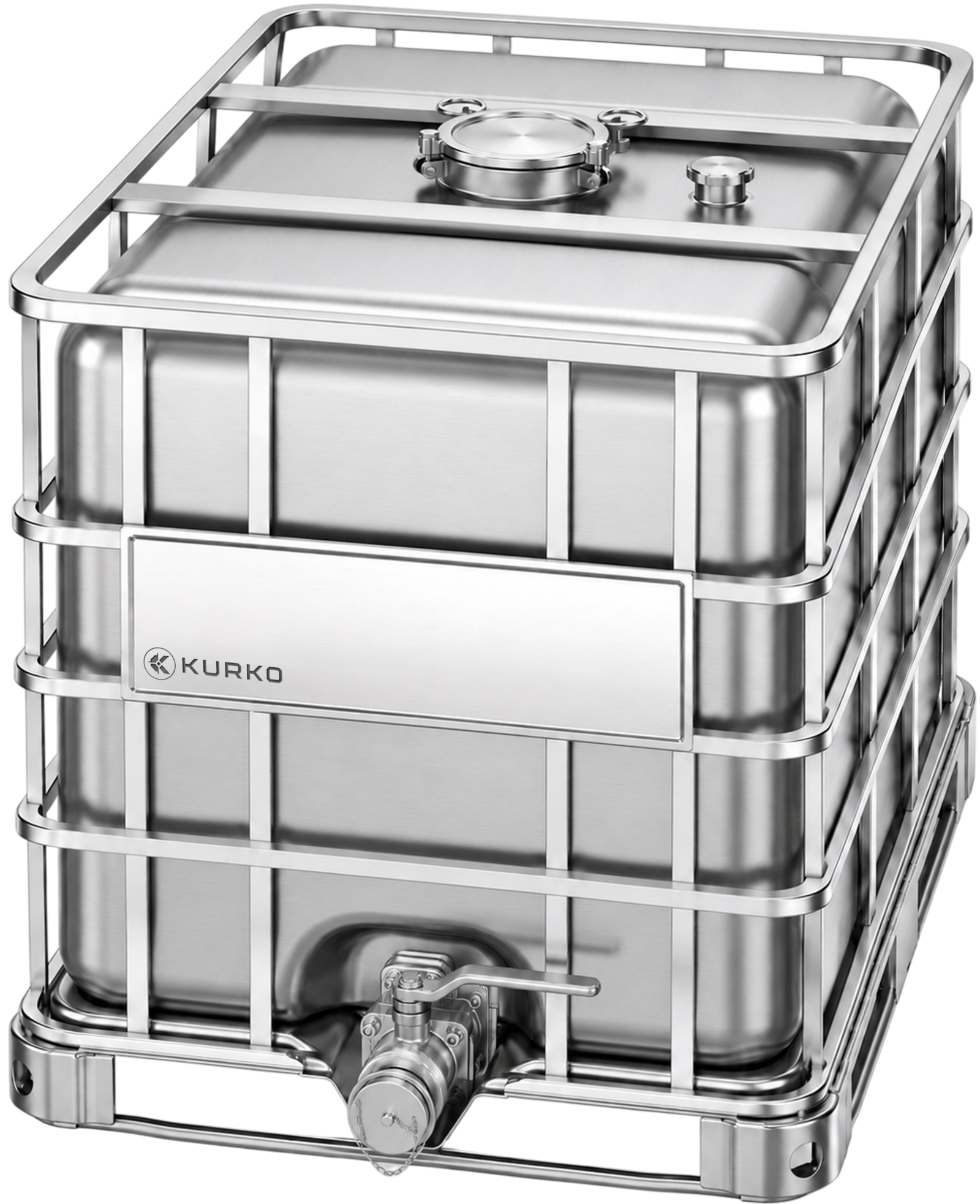

The SS330 is a 330-gallon all-stainless IBC for solvents and other stainless-compatible fluids in semiconductor and electronics manufacturing. The welded 316 stainless vessel provides a continuous conductive path to ground for safe flammable-liquid service — coverage plastic-vessel IBCs cannot offer. Product dispenses from the top through a stainless eduction tube; a protected bottom outlet supports full drainage, cleanout, and inspection between fills. Cage, base, valve, and vessel service independently, and the standard 48 × 40 footprint runs on existing handling and dispense infrastructure.| Capacity | 330-Gallon Nominal Fill (Approx. 1,250 Liters) |
| MATERIAL | 316 stainless steel vessel; Stainless-steel cage & base available |
| CONSTRUCTION | Smooth welded vessel; 1.5 mm or 2.0 mm wall; protective external cage with integrated pallet; optional mechanically polished or electropolished interior |
| Top Ports | Two-Inch Outlet and Vent Necks; S62×5 Modified Buttress |
| FOOTPRINT | 48.00 × 40.00 in; overall height ≈53.00–56.00 in; four-way forklift entry |
| DISCHARGE | Top dispense via eduction tube; protected 2” bottom outlet for drain & cleanout |
| SEALS | Application-specific seals including PTFE, EPDM, or FKM Per Request |
| GROUNDING | Bonding and grounding provision for conductive and flammable-liquid service |
| CERTIFICATION | Engineered to UN 31A/Y requirements for Packing Group II and III liquids |
